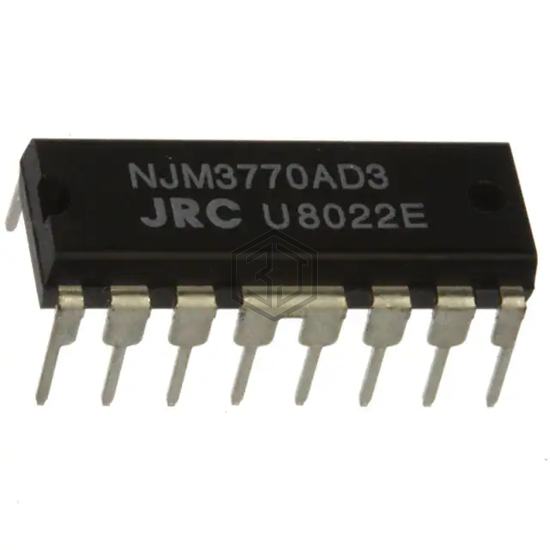

IC MTRDRV BIPLR 4.75-5.25V 16DIP
NJM3770AD3 is a PMIC - Motor Drivers, Controllers manufactured by Nisshinbo Micro Devices Inc.. IC MTRDRV BIPLR 4.75-5.25V 16DIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 125°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 16-DIP (0.325", 8.25mm), 12 Leads + 2 Fins.
In Stock: 8,739
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | Parallel |
| Technology | Bipolar |
| Step Resolution | 1, 1/2 |
| Applications | General Purpose |
| Current - Output | 1.5A |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 40V |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.325", 8.25mm), 12 Leads + 2 Fins |
| Supplier Device Package | 16-DIP Batwing |
NJM3770AD3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLA7071MPR | Sanken | IC MTR DRV UNIPOLAR 3-5.5V 23ZIP | 92% | View |
| STA7131MPR | Sanken | IC MTR DRV UNIPOLAR 10-44V 18ZIP | 87% | View |
| TB6562ANG,8 | Toshiba Semiconductor and Storage | IC MTR DRV BIPOLAR 10-34V 24SDIP | 87% | View |
| SMA6854MZ LF2451 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 53% | View |
| SMA6822MHLF2452 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 53% | View |
| SMA6854MZ LF2452 | Sanken | IC MOTOR DRVR 13.5V-16.5V 24SIP | 53% | View |
Submit your RFQ for NJM3770AD3 and get a quote within 24 hours.
