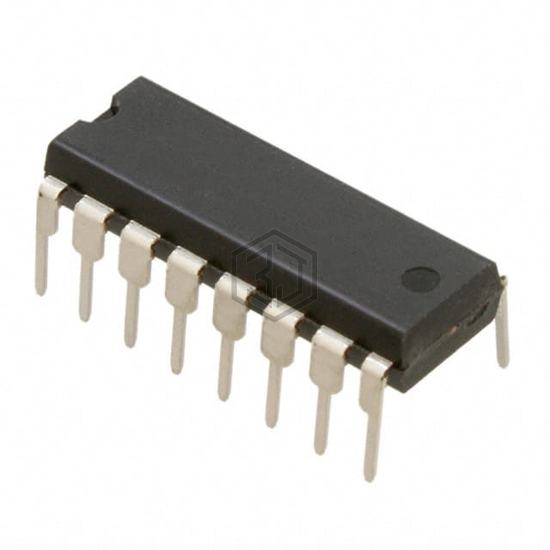

IC MTRDRV BIPLR 4.75-5.25V 16DIP
NJM3717D2 is a PMIC - Motor Drivers, Controllers manufactured by Nisshinbo Micro Devices Inc.. IC MTRDRV BIPLR 4.75-5.25V 16DIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 125°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 16-DIP (0.325", 8.25mm).
In Stock: 8,986
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | Parallel |
| Technology | Bipolar |
| Step Resolution | 1, 1/2 |
| Applications | General Purpose |
| Current - Output | 1A |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 45V |
| Operating Temperature | -20°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.325", 8.25mm) |
| Supplier Device Package | 16-DIP |
NJM3717D2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NJM3774D2 | Nisshinbo Micro Devices Inc. | IC MTRDRV BIPLR 4.75-5.25V 22DIP | 100% | View |
| SLA7080MPR | Sanken | IC MTR DRV UNIPOLAR 3-5.5V 23ZIP | 92% | View |
| SLA7075MPR | Sanken | IC MTR DRV UNIPOLAR 3-5.5V 23ZIP | 92% | View |
| SLA7070MPRT | Sanken | IC MTR DRV UNIPOLAR 3-5.5V 23ZIP | 92% | View |
| ZXBM5409Q-N-U | Diodes Incorporated | MOTOR DRIVER SERVO CTRL PDIP-8 | 75% | View |
| ZXBM5408Q-N-U | Diodes Incorporated | MOT DRV DC PDIP-8 TUBE 3.6K | 75% | View |
Submit your RFQ for NJM3717D2 and get a quote within 24 hours.
