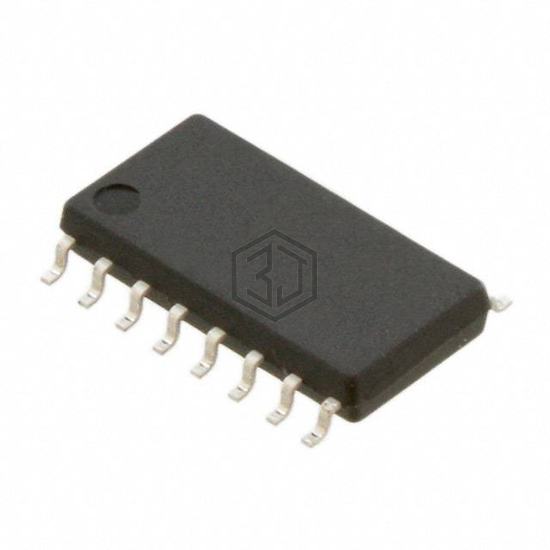

IC OPAMP TRANSCOND 2 CIRC 16DMP
NJM13700M is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Nisshinbo Micro Devices Inc.. IC OPAMP TRANSCOND 2 CIRC 16DMP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-SOIC (0.209", 5.30mm Width), current - supply 2.6mA.
In Stock: 3,222
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Amplifier Type | Transconductance |
| Number of Circuits | 2 |
| Output Type | Push-Pull |
| Slew Rate | 50V/µs |
| Gain Bandwidth Product | 2 MHz |
| -3db Bandwidth | - |
| Current - Input Bias | 400 nA |
| Voltage - Input Offset | 400 µV |
| Current - Supply | 2.6mA |
| Current - Output / Channel | 500 µA |
| Voltage - Supply Span (Min) | 36 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 16-DMP |
NJM13700M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NJM13600M | Nisshinbo Micro Devices Inc. | IC OPAMP TRANSCOND 2 CIRC 16DMP | 100% | View |
| NJM13600M-TE1 | Nisshinbo Micro Devices Inc. | IC OPAMP TRANSCOND 2 CIRC 16DMP | 100% | View |
| NJM13700M-TE1 | Nisshinbo Micro Devices Inc. | IC OPAMP TRANSCOND 2 CIRC 16DMP | 100% | View |
| NJM13700M-TE2 | Nisshinbo Micro Devices Inc. | IC OPAMP TRANSCOND 2 CIRC 16DMP | 100% | View |
| NJM13600M-TE2 | Nisshinbo Micro Devices Inc. | IC OPAMP TRANSCOND 2 CIRC 16DMP | 100% | View |
Submit your RFQ for NJM13700M and get a quote within 24 hours.
