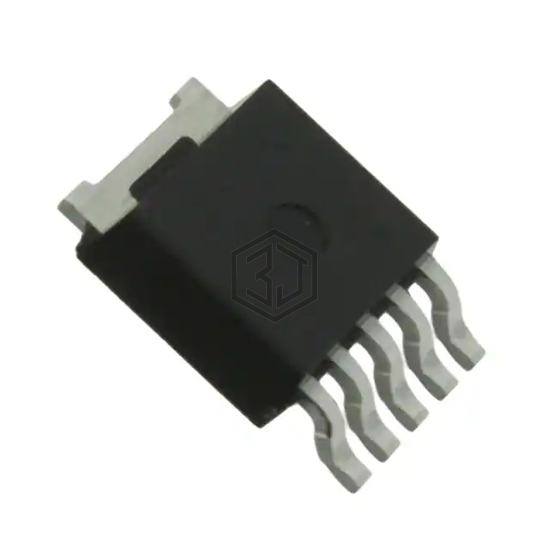

IC REG LINEAR 5V 1A TO252-5
NJM12856DL3-05-TE1 is a PMIC - Voltage Regulators - Linear manufactured by Nisshinbo Micro Devices Inc.. IC REG LINEAR 5V 1A TO252-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-252-6, DPak (5 Leads + Tab), current - output 1A.
In Stock: 2,607
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 600mA |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 600 µA |
| Current - Supply (Max) | - |
| PSRR | 68dB (1kHz) |
| Control Features | Enable, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Current |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-6, DPak (5 Leads + Tab) |
| Supplier Device Package | TO-252-5 |
Submit your RFQ for NJM12856DL3-05-TE1 and get a quote within 24 hours.
