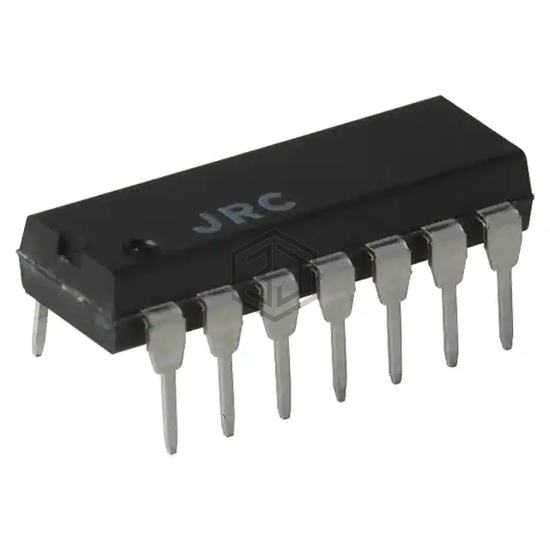

IC OPAMP JFET 4 CIRCUIT 14DIP
NJM064D is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Nisshinbo Micro Devices Inc.. IC OPAMP JFET 4 CIRCUIT 14DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 14-DIP (0.300", 7.62mm), current - supply 200µA.
In Stock: 54
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Amplifier Type | J-FET |
| Number of Circuits | 4 |
| Output Type | - |
| Slew Rate | 3.5V/µs |
| Gain Bandwidth Product | 1 MHz |
| -3db Bandwidth | - |
| Current - Input Bias | 2 pA |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 200µA |
| Current - Output / Channel | - |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package | 14-DIP |
NJM064D is Obsolete. Consider these compatible alternatives:
Submit your RFQ for NJM064D and get a quote within 24 hours.
