MALE 34POS STRAIGHT SMT 1MM

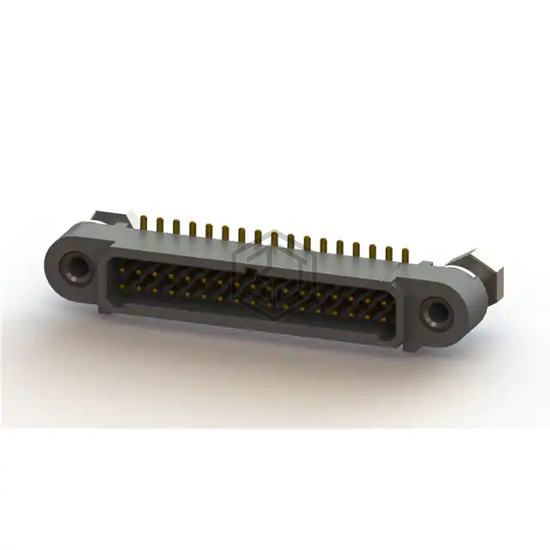

A221T34V22 is a Rectangular Connectors - Headers, Male Pins manufactured by Nicomatic. MALE 34POS STRAIGHT SMT 1MM. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 200°C, voltage rating 600VAC, contact material Copper Alloy.
In Stock: 16
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.039" (1.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Screw Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.157" (4.00mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 5.90µin (0.150µm) |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Mating Flange, Mounting Flange, Mounting Hardware |
| Operating Temperature | -65°C ~ 200°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2.5A |
| Voltage Rating | 600VAC |
Submit your RFQ for A221T34V22 and get a quote within 24 hours.
