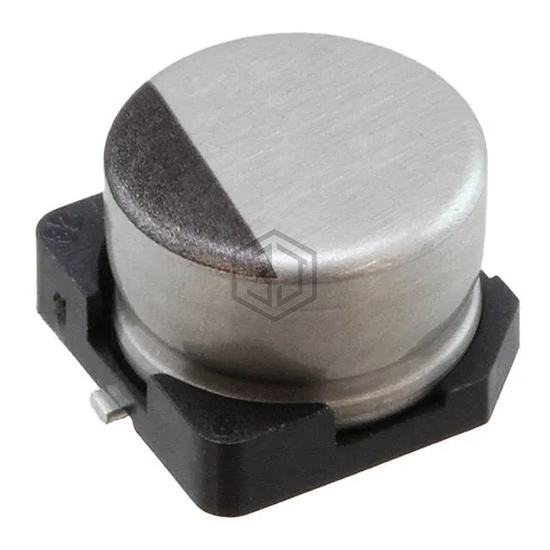

CAP ALUM 33UF 20% 25V SMD
UZT1E330MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,306
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 42 mA @ 120 Hz |
| Ripple Current @ High Frequency | 63 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.181" (4.60mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVEK336M25D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 25V SMD | 95% | View |
| 336SMH035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 35V SMD | 86% | View |
| EEE-HB1A330R | Panasonic Electronic Components | CAP ALUM 33UF 20% 10V SMD | 75% | View |
| EEE-HDV330XAP | Panasonic Electronic Components | CAP ALUM 33UF 20% 35V SMD | 72% | View |
| 25TZV33M6.3X6.1 | Rubycon | CAP ALUM 33UF 20% 25V SMD | 58% | View |
| EMVH101GDA330MJA0G | United Chemi-Con | CAP ALUM 33UF 20% 100V SMD | 56% | View |
Submit your RFQ for UZT1E330MCL1GB and get a quote within 24 hours.
