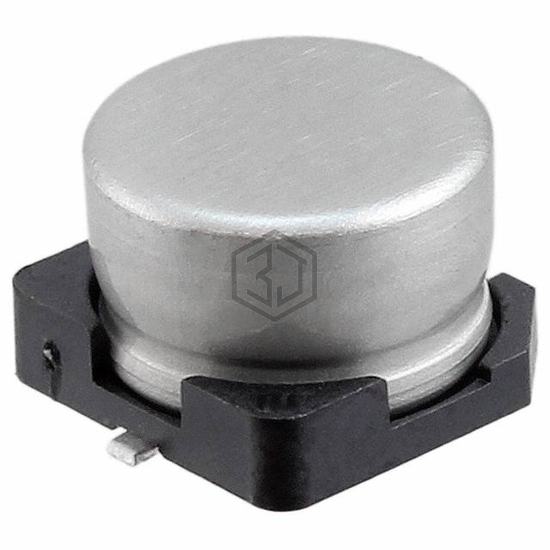

CAP ALUM 10UF 20% 35V SMD
UZP1V100MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 1,283
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 29 mA @ 120 Hz |
| Ripple Current @ High Frequency | 43.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.181" (4.60mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZP1V100MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVE35VC10RME55TP | United Chemi-Con | CAP ALUM 10UF 20% 35V SMD | 98% | View |
| EDH106M035A9DAA | KEMET | CAP ALUM 10UF 20% 35V SMD | 96% | View |
| EMK1HM100E61D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 77% | View |
| UWG1C100MCL1GB | Nichicon | CAP ALUM 10UF 20% 16V SMD | 70% | View |
| EEE-TG2A100P | Panasonic Electronic Components | CAP ALUM 10UF 20% 100V SMD | 57% | View |
| UZG1C100MCL1GB | Nichicon | CAP ALUM 10UF 20% 16V SMD | 50% | View |
Submit your RFQ for UZP1V100MCL1GB and get a quote within 24 hours.
