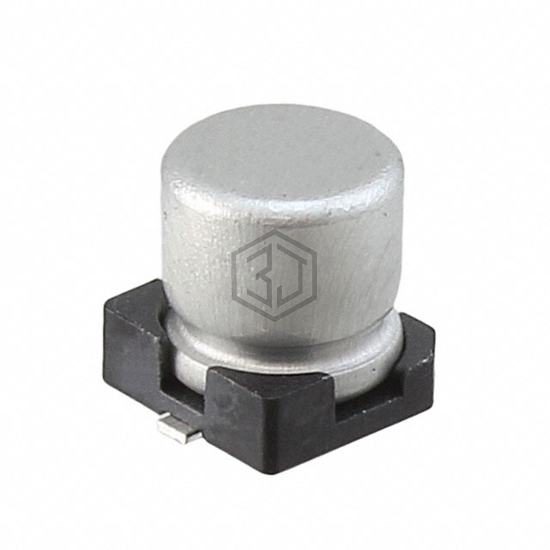

CAP ALUM 0.47UF 20% 50V SMD
UZP1HR47MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 0.47UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,837
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4 mA @ 120 Hz |
| Ripple Current @ High Frequency | 6 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.181" (4.60mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZP1HR47MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWP1HR47MCL1GB | Nichicon | CAP ALUM 0.47UF 20% 50V SMD | 100% | View |
| 865250640004 | Würth Elektronik | CAP ALUM 0.47UF 20% 50V SMD | 100% | View |
| UZS1HR47MCL1GB | Nichicon | CAP ALUM 0.47UF 20% 50V SMD | 100% | View |
| UZE1HR47MCL1GB | Nichicon | CAP ALUM 0.47UF 20% 50V SMD | 100% | View |
| MVK50VCR47MD55TP | United Chemi-Con | CAP ALUM 0.47UF 20% 50V SMD | 98% | View |
| ECE-V1HSR47SR | Panasonic Electronic Components | CAP ALUM 0.47UF 20% 50V SMD | 93% | View |
Submit your RFQ for UZP1HR47MCL1GB and get a quote within 24 hours.
