CAP ALUM 2.2UF 20% 50V SMD

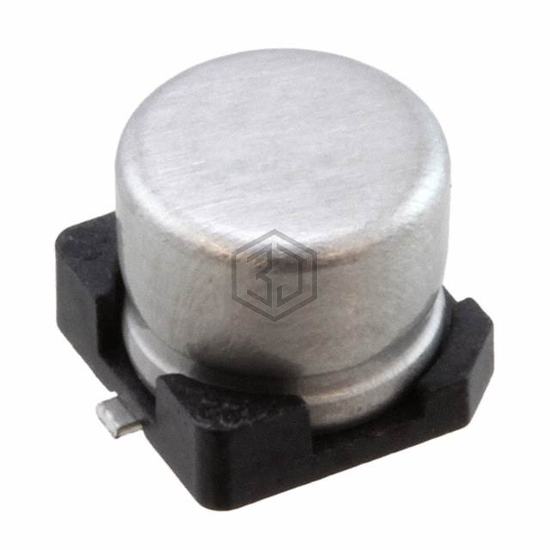

UZP1H2R2MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 9,045
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 13 mA @ 120 Hz |
| Ripple Current @ High Frequency | 19.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.181" (4.60mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZP1H2R2MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865250640006 | Würth Elektronik | CAP ALUM 2.2UF 20% 50V SMD | 100% | View |
| UWP1H2R2MCL1GB | Nichicon | CAP ALUM 2.2UF 20% 50V SMD | 100% | View |
| 865230640006 | Würth Elektronik | CAP ALUM 2.2UF 20% 50V SMD | 92% | View |
| UUQ1H2R2MCL1GB | Nichicon | CAP ALUM 2.2UF 20% 50V SMD | 92% | View |
| MAL215371228E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 50V SMD | 91% | View |
| UZG1H2R2MCL1GB | Nichicon | CAP ALUM 2.2UF 20% 50V SMD | 85% | View |
Submit your RFQ for UZP1H2R2MCL1GB and get a quote within 24 hours.
