CAP ALUM 2.2UF 20% 35V SMD

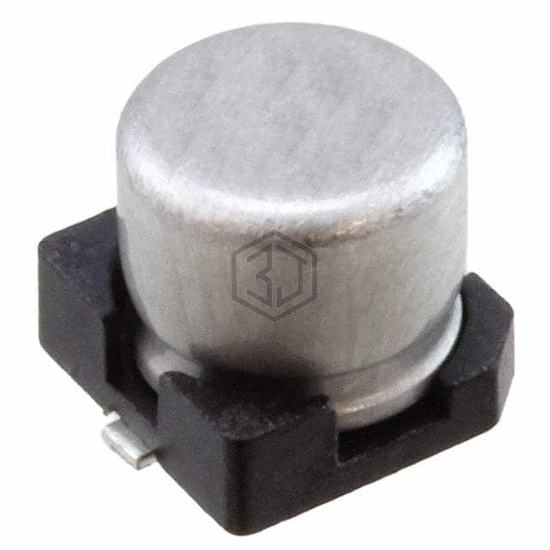

UZE1V2R2MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 3,073
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.4 mA @ 120 Hz |
| Ripple Current @ High Frequency | 12.6 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.156" (3.95mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZE1V2R2MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35NSKV2.2M4X5.5 | Rubycon | CAP ALUM 2.2UF 20% 35V SMD | 100% | View |
| UWX1V2R2MCR2GB | Nichicon | CAP ALUM 2.2UF 20% 35V SMD | 100% | View |
| TYEH1H225D55MTR | TE Connectivity Passive Product | CAP ALUM 2.2UF 20% 50V SMD | 81% | View |
| MVK50VC2R2MD55TP | United Chemi-Con | CAP ALUM 2.2UF 20% 50V SMD | 80% | View |
| EMVA630ADA2R2MD55G | United Chemi-Con | CAP ALUM 2.2UF 20% 63V SMD | 65% | View |
| UWG1H2R2MCL1GB | Nichicon | CAP ALUM 2.2UF 20% 50V SMD | 55% | View |
Submit your RFQ for UZE1V2R2MCL1GB and get a quote within 24 hours.
