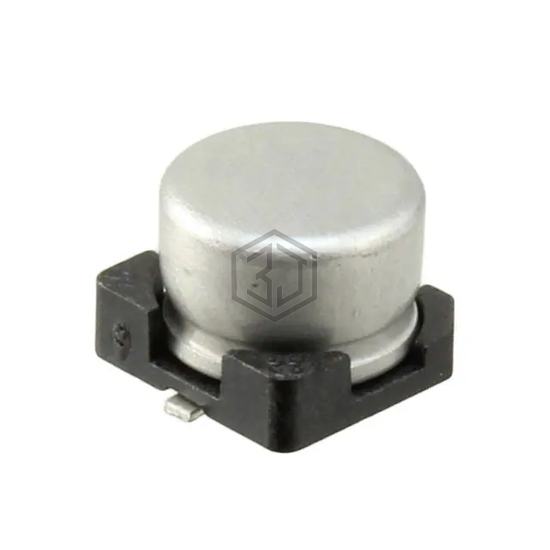

CAP ALUM 3.3UF 20% 25V SMD
UZE1E3R3MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 9,241
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12 mA @ 120 Hz |
| Ripple Current @ High Frequency | 18 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.156" (3.95mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZE1E3R3MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUP1V3R3MCL1GS | Nichicon | CAP ALUM 3.3UF 20% 35V SMD | 76% | View |
| 865250540002 | Würth Elektronik | CAP ALUM 3.3UF 20% 35V SMD | 76% | View |
| UWZ1H3R3MCL1GB | Nichicon | CAP ALUM 3.3UF 20% 50V SMD | 72% | View |
| 50SJV3.3M4X6.1 | Rubycon | CAP ALUM 3.3UF 20% 50V SMD | 72% | View |
| UT335M063HDHTA | Aillen | CAP. ALUM 3.3UF 63V 20% SMD | 66% | View |
| UWP1H3R3MCL1GB | Nichicon | CAP ALUM 3.3UF 20% 50V SMD | 62% | View |
Submit your RFQ for UZE1E3R3MCL1GB and get a quote within 24 hours.
