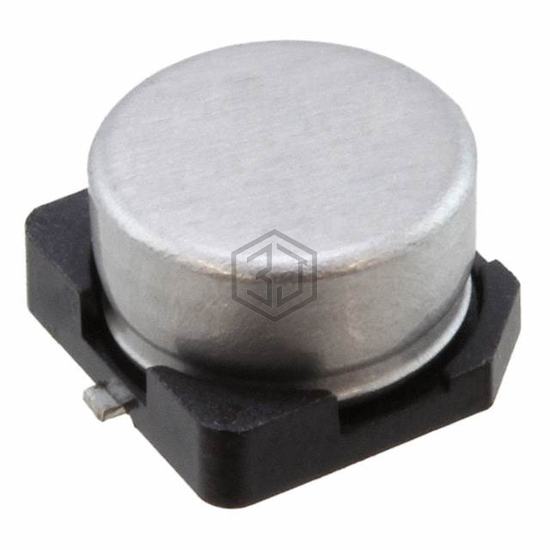

CAP ALUM 10UF 20% 25V SMD
UZE1E100MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3,322
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 27 mA @ 120 Hz |
| Ripple Current @ High Frequency | 40.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.156" (3.95mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZE1E100MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVA250ADA100MD55G | United Chemi-Con | CAP ALUM 10UF 20% 25V SMD | 94% | View |
| UT106M025HDHTA | Aillen | CAP. ALUM 10UF 25V 20% SMD | 92% | View |
| EEE-HAV100WAR | Panasonic Electronic Components | CAP ALUM 10UF 20% 35V SMD | 83% | View |
| UWZ1H100MCL1GS | Nichicon | CAP ALUM 10UF 20% 50V SMD | 74% | View |
| EEE-HP1A100R | Panasonic Electronic Components | CAP ALUM 10UF 20% 10V SMD | 68% | View |
| 16SLV10M4X6.1 | Rubycon | CAP ALUM 10UF 20% 16V SMD | 67% | View |
