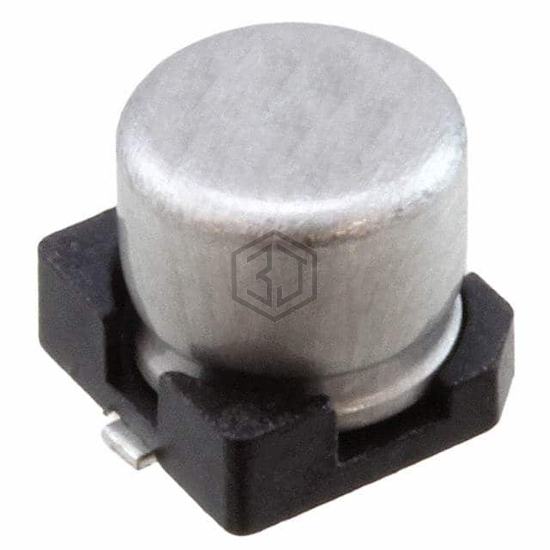

CAP ALUM 4.7UF 20% 16V SMD
UZE1C4R7MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 7,759
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12 mA @ 120 Hz |
| Ripple Current @ High Frequency | 18 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.156" (3.95mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZE1C4R7MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BMVK160ADA4R7MD60G | United Chemi-Con | CAP ALUM 4.7UF 20% 16V SMD | 100% | View |
| CA025M4R70REB-0405 | Yageo America | CAP ALUM 4.7UF 20% SMD | 100% | View |
| AVEK475M16B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 16V SMD | 96% | View |
| UWT1V4R7MCL1GB | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 68% | View |
| EMVA630ADA4R7ME55G | United Chemi-Con | CAP ALUM 4.7UF 20% 63V SMD | 54% | View |
| EDH475M050A9DAA | KEMET | CAP ALUM 4.7UF 20% 50V SMD | 52% | View |
