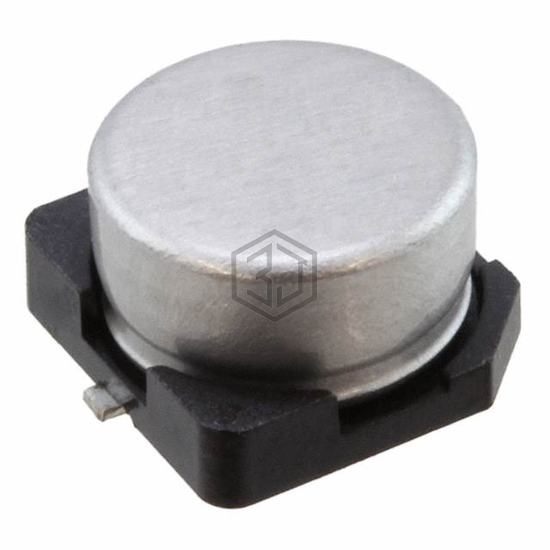

CAP ALUM 33UF 20% 16V SMD
UZE1C330MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 8,879
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 49 mA @ 120 Hz |
| Ripple Current @ High Frequency | 73.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.156" (3.95mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZE1C330MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AVES336M25D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 25V SMD | 80% | View |
| EEE-TG2A330P | Panasonic Electronic Components | CAP ALUM 33UF 20% 100V SMD | 70% | View |
| EMVL500ADA330MHA0G | United Chemi-Con | CAP ALUM 33UF 20% 50V SMD | 65% | View |
| EDT336M035S9HAA | KEMET | CAP ALUM 33UF 20% 35V SMD | 63% | View |
| EMZA100ADA330ME61G | United Chemi-Con | CAP ALUM 33UF 20% 10V SMD | 61% | View |
| UUD1C330MCL1GS | Nichicon | CAP ALUM 33UF 20% 16V SMD | 53% | View |
