CAP ALUM 10UF 20% 10V SMD

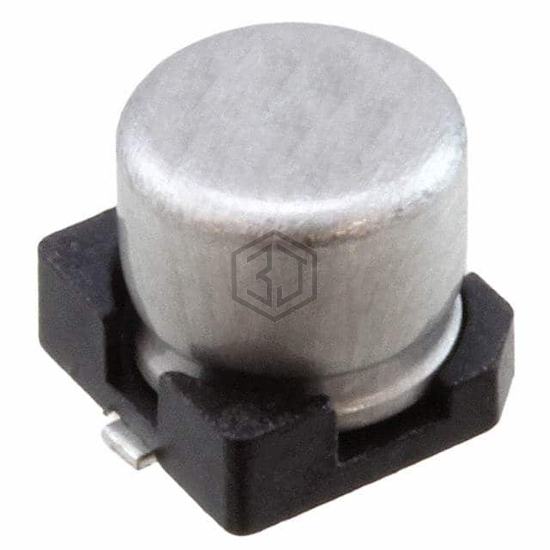

UZE1A100MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 4,824
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17 mA @ 120 Hz |
| Ripple Current @ High Frequency | 25.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.156" (3.95mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZE1A100MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UZG1C100MCL1GB | Nichicon | CAP ALUM 10UF 20% 16V SMD | 83% | View |
| UZT1C100MCL1GB | Nichicon | CAP ALUM 10UF 20% 16V SMD | 83% | View |
| 865250140001 | Würth Elektronik | CAP ALUM 10UF 20% 6.3V SMD | 80% | View |
| UCQ1C100MCL1GB | Nichicon | CAP ALUM 10UF 20% 16V SMD | 80% | View |
| 106NPS016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 16V SMD | 67% | View |
| UZG1H100MCL1GB | Nichicon | CAP ALUM 10UF 20% 50V SMD | 59% | View |
Submit your RFQ for UZE1A100MCL1GB and get a quote within 24 hours.
