CAP ALUM 22UF 20% 16V SMD

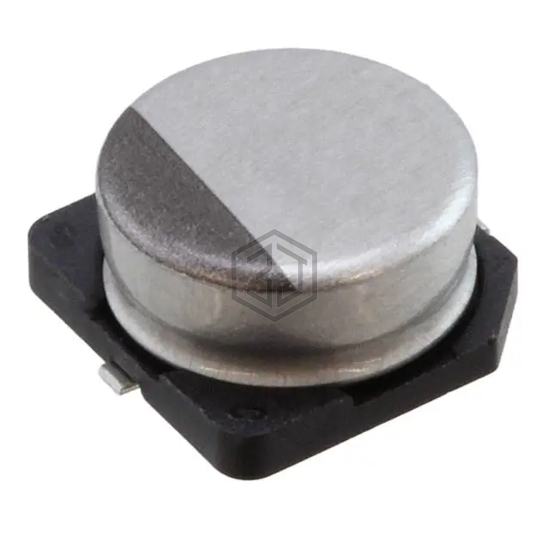

UZD1C220MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 1,851
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 37 mA @ 120 Hz |
| Ripple Current @ High Frequency | 55.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.126" (3.20mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZD1C220MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWR1C220MCL1GB | Nichicon | CAP ALUM 22UF 20% 16V SMD | 100% | View |
| 16SKV22M5X5.5 | Rubycon | CAP ALUM 22UF 20% 16V SMD | 94% | View |
| EDH226M025S9DAA | KEMET | CAP ALUM 22UF 20% 25V SMD | 69% | View |
| EEE-FN1A220R | Panasonic Electronic Components | CAP ALUM 22UF 20% 10V SMD | 63% | View |
| UWP1V220MCL1GB | Nichicon | CAP ALUM 22UF 20% 35V SMD | 61% | View |
| UWZ0J220MCL1GB | Nichicon | CAP ALUM 22UF 20% 6.3V SMD | 54% | View |
