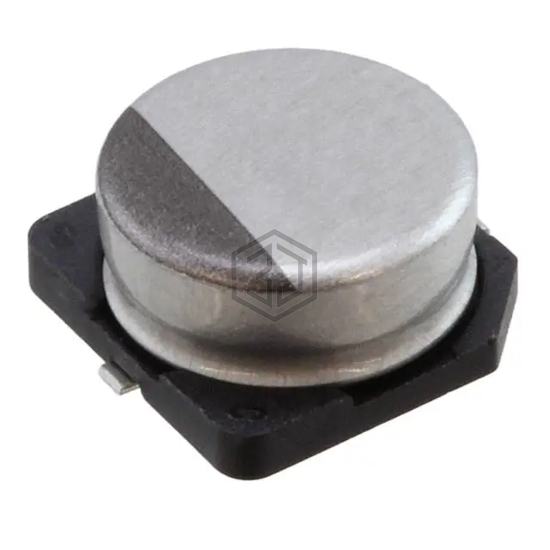

CAP ALUM 33UF 20% 10V SMD
UZD1A330MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 9,583
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 41 mA @ 120 Hz |
| Ripple Current @ High Frequency | 61.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.126" (3.20mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UZD1A330MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWX1A330MCR1GB | Nichicon | CAP ALUM 33UF 20% 10V SMD | 100% | View |
| ECE-V1AA330WR | Panasonic Electronic Components | CAP ALUM 33UF 20% 10V SMD | 89% | View |
| AHA336M35D16B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 35V SMD | 75% | View |
| UWT0J330MCR1GB | Nichicon | CAP ALUM 33UF 20% 6.3V SMD | 71% | View |
| EEE-FN0J330R | Panasonic Electronic Components | CAP ALUM 33UF 20% 6.3V SMD | 68% | View |
| EMVH250ADA330MF60G | United Chemi-Con | CAP ALUM 33UF 20% 25V SMD | 65% | View |
