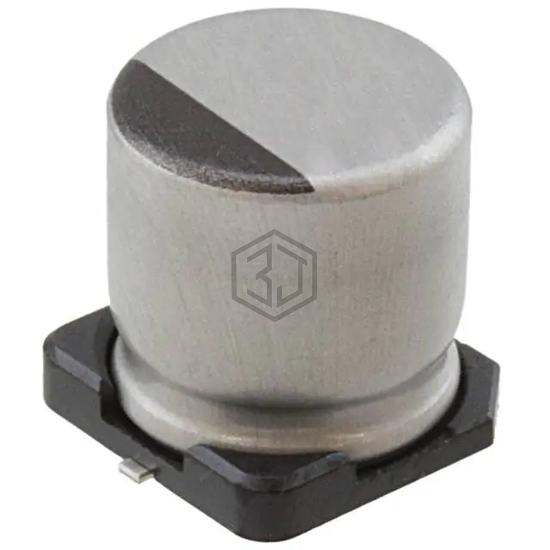

CAP ALUM 150UF 20% 50V SMD
UWZ1H151MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 8,405
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 270 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMF1HM151GB0D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 100% | View |
| 35SKV150M8X10.5 | Rubycon | CAP ALUM 150UF 20% 35V SMD | 77% | View |
| EEE-FK1C151XP | Panasonic Electronic Components | CAP ALUM 150UF 20% 16V SMD | 74% | View |
| EEE-FK1C151XV | Panasonic Electronic Components | CAP ALUM 150UF 20% 16V SMD | 74% | View |
| 865060143005 | Würth Elektronik | CAP ALUM 150UF 20% 6.3V SMD | 73% | View |
| MAL216099703E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 80V SMD | 69% | View |
Submit your RFQ for UWZ1H151MCL1GS and get a quote within 24 hours.
