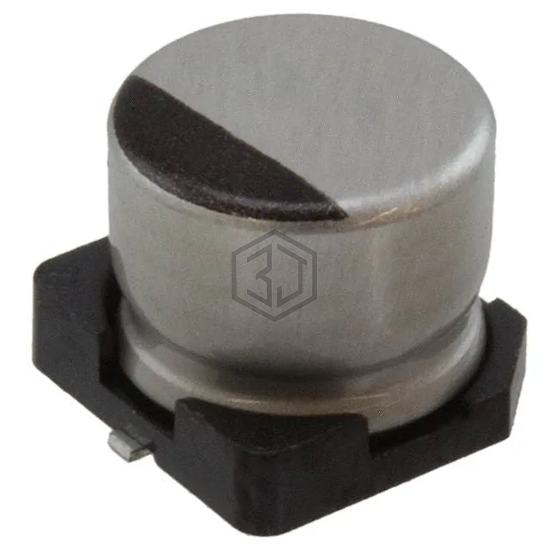

CAP ALUM 33UF 20% 25V SMD
UWZ1E330MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 8,220
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 48 mA @ 120 Hz |
| Ripple Current @ High Frequency | 72 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AHA336M25C12T-F | Cornell Dubilier Knowles | CAP ALUM 33UF 20% 25V SMD | 97% | View |
| UE336M025HEHTA | Aillen | CAP ALUM 33UF 20% 25V SMD | 78% | View |
| 16SKV33M6.3X5.5 | Rubycon | CAP ALUM 33UF 20% 16V SMD | 71% | View |
| EEE-FKA330UAR | Panasonic Electronic Components | CAP ALUM 33UF 20% 10V SMD | 69% | View |
| AEA0810330M080R | KYOCERA AVX | ALUMINUM CAP | 64% | View |
| AHA336M2AG24T-F | Cornell Dubilier Knowles | CAP ALUM 33UF 20% 100V SMD | 61% | View |
Submit your RFQ for UWZ1E330MCL1GB and get a quote within 24 hours.
