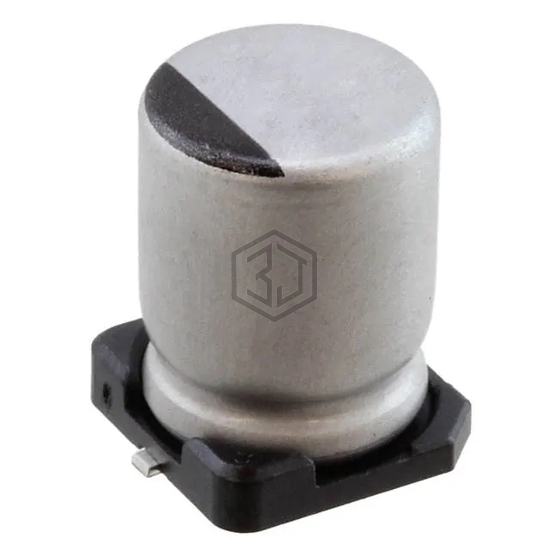

CAP ALUM 220UF 20% 25V SMD
UWZ1E221MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 2,538
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 220 mA @ 120 Hz |
| Ripple Current @ High Frequency | 232.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWT1E221MNL1GS | Nichicon | CAP ALUM 220UF 20% 25V SMD | 92% | View |
| UT227M035HFKTA | Aillen | CAP. ALUM 220UF 35V 20% SMD | 82% | View |
| AFK227M16E16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 16V SMD | 80% | View |
| MAL215374221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 10V SMD | 65% | View |
| UWG1A221MNL1GS | Nichicon | CAP ALUM 220UF 20% 10V SMD | 63% | View |
| EEE-FK1E221GP | Panasonic Electronic Components | CAP ALUM 220UF 20% 25V SMD | 60% | View |
