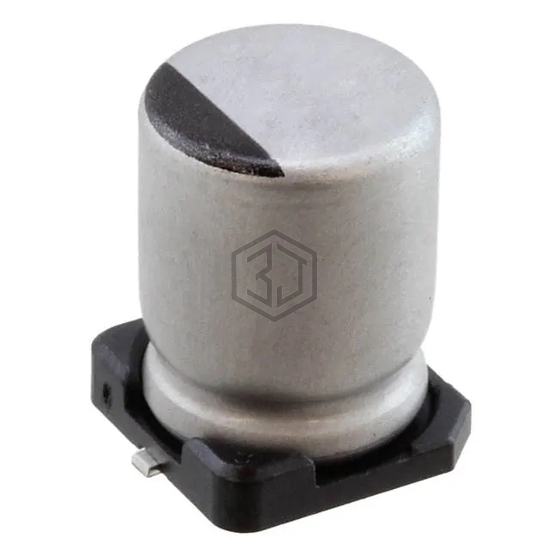

CAP ALUM 470UF 20% 16V SMD
UWZ1C471MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 9,704
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 210 mA @ 120 Hz |
| Ripple Current @ High Frequency | 315 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMK1CM471FB0D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 100% | View |
| EEE-FKJ471XSV | Panasonic Electronic Components | CAP ALUM 470UF 20% 6.3V SMD | 92% | View |
| AEH1012471M016R | KYOCERA AVX | ALUMINUM CAP | 91% | View |
| UWT1E471MNL1GS | Nichicon | CAP ALUM 470UF 20% 25V SMD | 78% | View |
| CEE1C471MCB08A5 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 67% | View |
| EEE-FN1C471P | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V SMD | 62% | View |
Submit your RFQ for UWZ1C471MCL1GS and get a quote within 24 hours.
