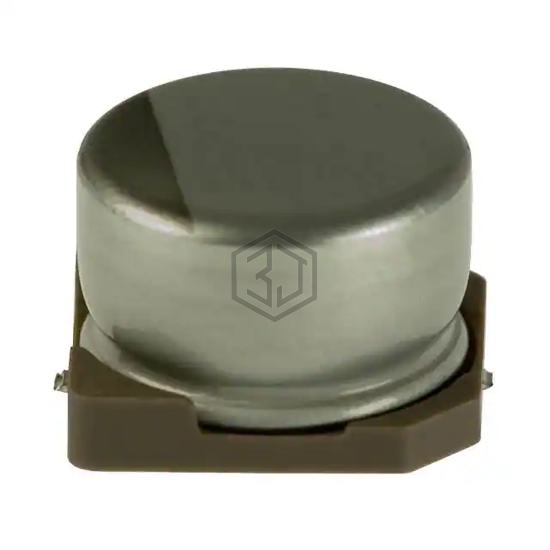

CAP ALUM 33UF 20% 35V SMD
UWX1V330MCR1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 9,507
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 62 mA @ 120 Hz |
| Ripple Current @ High Frequency | 93 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWX1V330MCR1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWZ1H330MCL1GS | Nichicon | CAP ALUM 33UF 20% 50V SMD | 88% | View |
| EEE-TG1J330UP | Panasonic Electronic Components | CAP ALUM 33UF 20% 63V SMD | 79% | View |
| EMLA500ADA330MF80G | United Chemi-Con | CAP ALUM 33UF 20% 50V SMD | 77% | View |
| EDH336M050S9HAA | KEMET | CAP ALUM 33UF 20% 50V SMD | 75% | View |
| EMLA100ADA330ME61G | United Chemi-Con | CAP ALUM 33UF 20% 10V SMD | 67% | View |
| AFK336M80F24T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 80V SMD | 60% | View |
Submit your RFQ for UWX1V330MCR1GB and get a quote within 24 hours.
