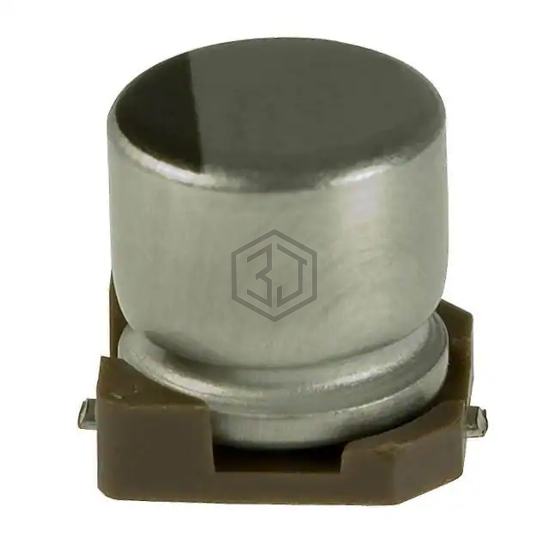

CAP ALUM 10UF 20% 35V SMD
UWX1V100MCR1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 6,124
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 29 mA @ 120 Hz |
| Ripple Current @ High Frequency | 43.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWX1V100MCR1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUL1V100MCL1GS | Nichicon | CAP ALUM 10UF 20% 35V SMD | 93% | View |
| UUA1E100MCL1GS | Nichicon | CAP ALUM 10UF 20% 25V SMD | 86% | View |
| VEJ100M1HTR-0606S | Surge | CAP ALUM 50V POLAR | 86% | View |
| 16SZV10M4X5.5 | Rubycon | CAP ALUM 10UF 20% 16V SMD | 67% | View |
| 16SJV10M4X6.1 | Rubycon | CAP ALUM 10UF 20% 16V SMD | 56% | View |
| EDK106M100A9MAA | KEMET | CAP ALUM 10UF 20% 100V SMD | 53% | View |
Submit your RFQ for UWX1V100MCR1GB and get a quote within 24 hours.
