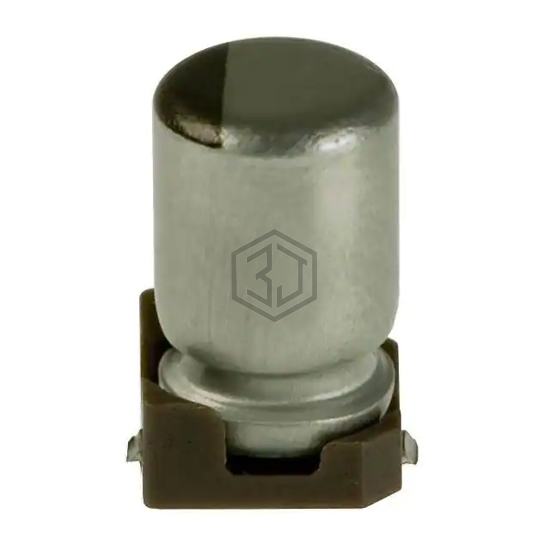

CAP ALUM 0.33UF 20% 50V SMD
UWX1HR33MCR2GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 0.33UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 6,323
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 4.2 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.118" Dia (3.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.130" L x 0.130" W (3.30mm x 3.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWX1HR33MCR2GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50JGV0.33M4X6.1 | Rubycon | CAP ALUM 0.33UF 20% 50V SMD | 100% | View |
| UZS1HR33MCL1GB | Nichicon | CAP ALUM 0.33UF 20% 50V SMD | 100% | View |
| UZT1HR33MCL1GB | Nichicon | CAP ALUM 0.33UF 20% 50V SMD | 100% | View |
| BMVK500ADAR33MD60G | United Chemi-Con | CAP ALUM 0.33UF 20% 50V SMD | 100% | View |
| AVGA334M50B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 0.33UF 20% 50V SMD | 100% | View |
| MVKBP50VCR33MD60TP | United Chemi-Con | CAP ALUM 0.33UF 20% 50V SMD | 100% | View |
Submit your RFQ for UWX1HR33MCR2GB and get a quote within 24 hours.
