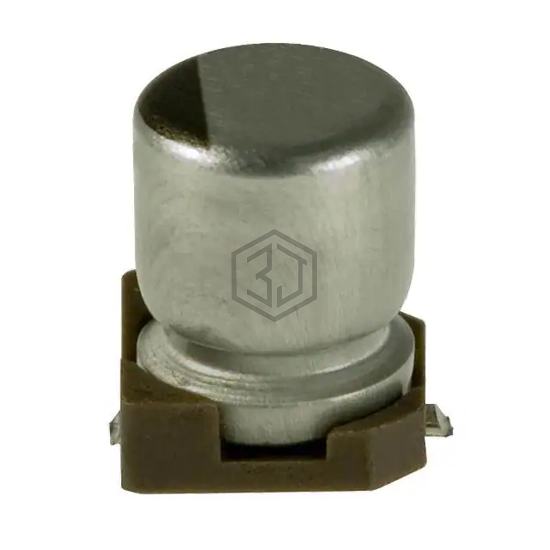

CAP ALUM 0.22UF 20% 50V SMD
UWX1HR22MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 0.22UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,033
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWX1HR22MCL1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUP1HR22MCL1GS | Nichicon | CAP ALUM 0.22UF 20% 50V SMD | 100% | View |
| UWP1HR22MCL1GB | Nichicon | CAP ALUM 0.22UF 20% 50V SMD | 100% | View |
| UZE1HR22MCL1GB | Nichicon | CAP ALUM 0.22UF 20% 50V SMD | 100% | View |
| UUL1HR22MCL1GS | Nichicon | CAP ALUM 0.22UF 20% 50V SMD | 100% | View |
| 50SEV0.22M4X5.5 | Rubycon | CAP ALUM 0.22UF 20% 50V SMD | 100% | View |
| MVK50VCR22MD60TP | United Chemi-Con | CAP ALUM 0.22UF 20% 50V SMD | 100% | View |
Submit your RFQ for UWX1HR22MCL1GB and get a quote within 24 hours.
