CAP ALUM 33UF 20% 50V SMD

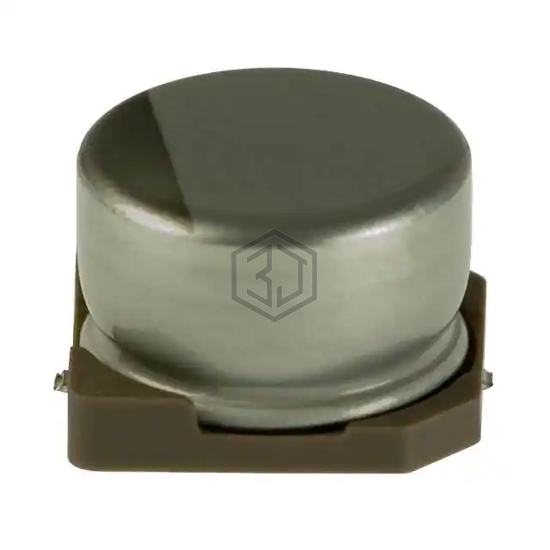

UWX1H330MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 8,482
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 71 mA @ 120 Hz |
| Ripple Current @ High Frequency | 106.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWX1H330MCL1GB is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVH630ARA330MHA0G | Chemi-Con | CAP ALUM 33UF 20% 63V SMD | 85% | View |
| 865080240003 | Würth Elektronik | CAP ALUM 33UF 20% 10V SMD | 70% | View |
| EMVH101ADA330MJA0G | United Chemi-Con | CAP ALUM 33UF 20% 100V SMD | 67% | View |
| 865080442006 | Würth Elektronik | CAP ALUM 33UF 20% 25V SMD | 60% | View |
| EEE-HC1A330R | Panasonic Electronic Components | CAP ALUM 33UF 20% 10V SMD | 58% | View |
| 10JZV33M4X6.1 | Rubycon | CAP ALUM 33UF 20% 10V SMD | 53% | View |
Submit your RFQ for UWX1H330MCL1GB and get a quote within 24 hours.
