CAP ALUM 56UF 20% 25V SMD

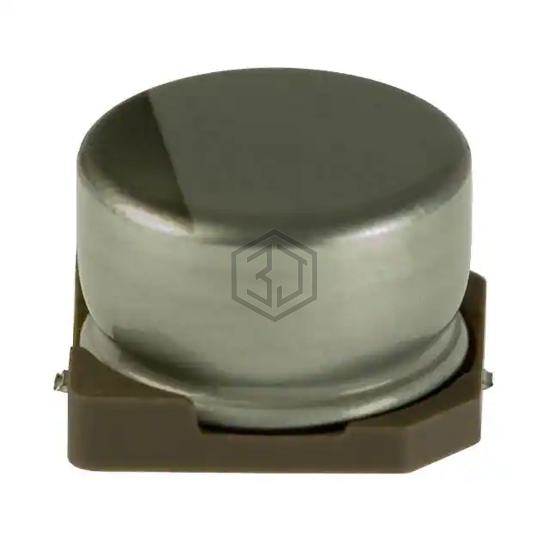

UWX1E560MCR1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 4,936
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 76 mA @ 120 Hz |
| Ripple Current @ High Frequency | 114 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWX1E560MCR1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1E560SR | Panasonic Electronic Components | CAP ALUM 56UF 20% 25V SMD | 84% | View |
| UWD1E560MCL1GS | Nichicon | CAP ALUM 56UF 20% 25V SMD | 73% | View |
| 865080142005 | Würth Elektronik | CAP ALUM 56UF 20% 6.3V SMD | 66% | View |
| UWD1C560MCL1GS | Nichicon | CAP ALUM 56UF 20% 16V SMD | 60% | View |
| 10TZV56M6.3X6.1 | Rubycon | CAP ALUM 56UF 20% 10V SMD | 56% | View |
| 566AXZ035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 56UF 20% 35V SMD | 54% | View |
Submit your RFQ for UWX1E560MCR1GB and get a quote within 24 hours.
