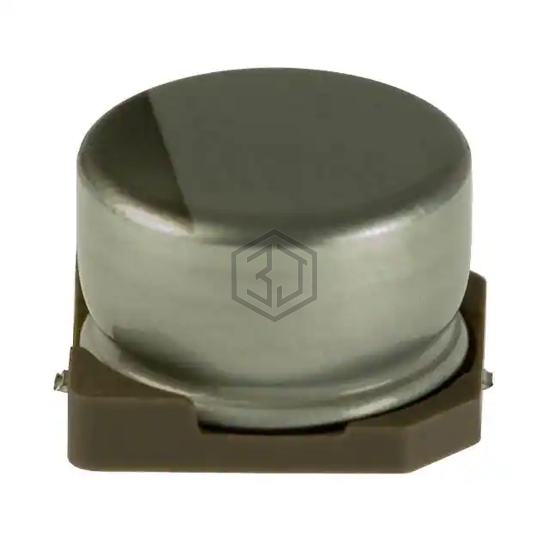

CAP ALUM 100UF 20% 25V SMD
UWX1E101MCR1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3,572
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 110 mA @ 120 Hz |
| Ripple Current @ High Frequency | 165 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWX1E101MCR1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AHA107M25E16T-F | Cornell Dubilier Knowles | CAP ALUM 100UF 20% 25V SMD | 94% | View |
| AHA107M35F24T-F | Cornell Dubilier Knowles | CAP ALUM 100UF 20% 35V SMD | 83% | View |
| EMZA160ARA101MF61G | Chemi-Con | CAP ALUM 100UF 20% 16V SMD | 74% | View |
| AVS107M25F24T-F | Cornell Dubilier Knowles | CAP ALUM 100UF 20% 25V SMD | 73% | View |
| EMVL500ARA101MJA0G | Chemi-Con | CAP ALUM 100UF 20% 50V SMD | 71% | View |
| UUN1V101MNJ1MS | Nichicon | CAP ALUM 100UF 20% 35V SMD | 66% | View |
