CAP ALUM 150UF 20% 10V SMD

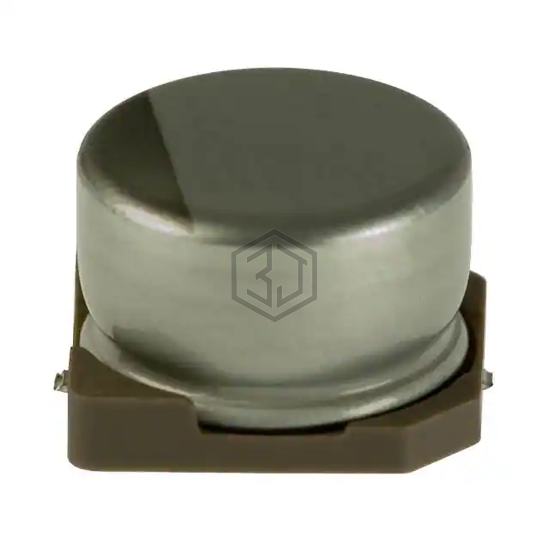

UWX1A151MCR1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 6,993
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 111 mA @ 120 Hz |
| Ripple Current @ High Frequency | 166.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWX1A151MCR1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWG1A151MCL1GS | Nichicon | CAP ALUM 150UF 20% 10V SMD | 91% | View |
| 157SMH010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 150UF 20% 10V SMD | 88% | View |
| EEE-FK1A151AP | Panasonic Electronic Components | CAP ALUM 150UF 20% 10V SMD | 83% | View |
| EEE-FN1A151P | Panasonic Electronic Components | CAP ALUM 150UF 20% 10V SMD | 83% | View |
| EEE-FK1A151P | Panasonic Electronic Components | CAP ALUM 150UF 20% 10V SMD | 80% | View |
| EDT157M016A9MAA | KEMET | CAP ALUM 150UF 20% 16V SMD | 79% | View |
Submit your RFQ for UWX1A151MCR1GB and get a quote within 24 hours.
