CAP ALUM 56UF 20% 6.3V SMD

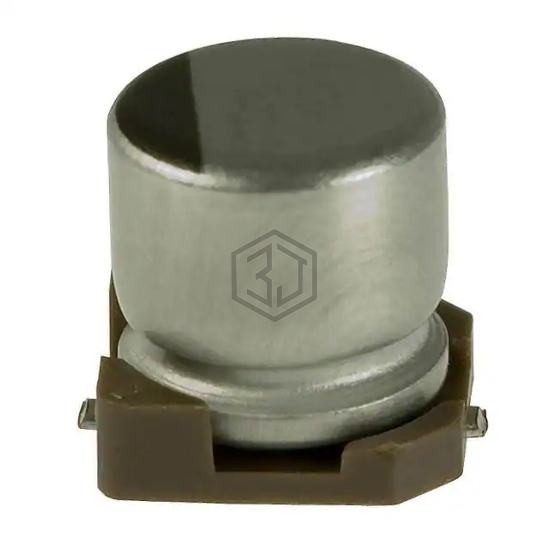

UWX0J560MCR1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 8,378
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 52 mA @ 120 Hz |
| Ripple Current @ High Frequency | 78 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWX0J560MCR1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWX1A560MCL1GB | Nichicon | CAP ALUM 56UF 20% 10V SMD | 82% | View |
| UWX1A560MCR1GB | Nichicon | CAP ALUM 56UF 20% 10V SMD | 82% | View |
| UWX0G560MCL1GB | Nichicon | CAP ALUM 56UF 20% 4V SMD | 76% | View |
| UWD0J560MCL1GS | Nichicon | CAP ALUM 56UF 20% 6.3V SMD | 76% | View |
| 10TZV56M6.3X6.1 | Rubycon | CAP ALUM 56UF 20% 10V SMD | 70% | View |
| 865080142005 | Würth Elektronik | CAP ALUM 56UF 20% 6.3V SMD | 69% | View |
