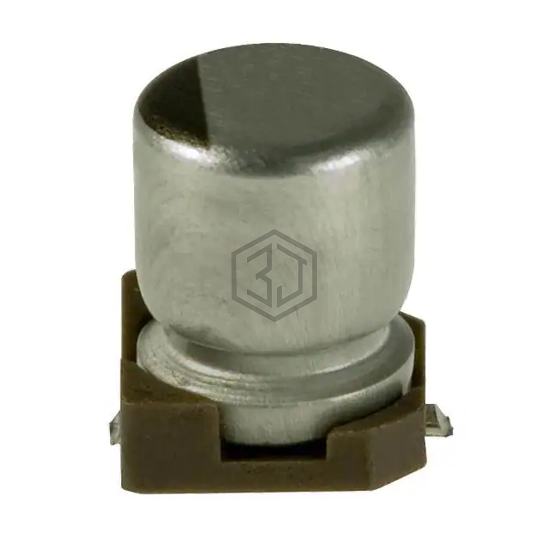

CAP ALUM 47UF 20% 4V SMD
UWX0G470MCR1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 4 V, package / case Radial, Can - SMD.
In Stock: 2,009
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 33 mA @ 120 Hz |
| Ripple Current @ High Frequency | 49.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWX0G470MCR1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VEU470M0JTR-0506S | Surge | CAP ALUM 6.3V POLAR | 81% | View |
| UUA0J470MCL1GS | Nichicon | CAP ALUM 47UF 20% 6.3V SMD | 79% | View |
| EEE-HC0J470R | Panasonic Electronic Components | CAP ALUM 47UF 20% 6.3V SMD | 67% | View |
| EDH476M010S9DAA | KEMET | CAP ALUM 47UF 20% 10V SMD | 55% | View |
| EEE-FK1C470SR | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V SMD | 51% | View |
| EDH476M025A9GAA | KEMET | CAP ALUM 47UF 20% 25V SMD | 51% | View |
Submit your RFQ for UWX0G470MCR1GB and get a quote within 24 hours.
