CAP ALUM 100UF 20% 4V SMD

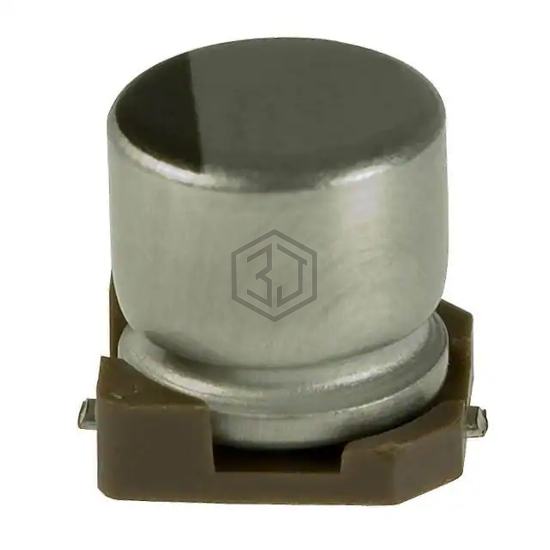

UWX0G101MCR1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 4 V, package / case Radial, Can - SMD.
In Stock: 9,079
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 56 mA @ 120 Hz |
| Ripple Current @ High Frequency | 84 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWX0G101MCR1GB is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VES101M0JTR-0605S | Surge | CAP ALUM 6.3V POLAR | 84% | View |
| VEJ101M0JTR-0606S | Surge | CAP ALUM 6.3V POLAR | 78% | View |
| VEU101M0JTR-0606S | Surge | CAP ALUM 6.3V POLAR | 78% | View |
| VES101M1ATR-0605S | Surge | CAP ALUM 10V POLAR | 73% | View |
| VEJ101M1ATR-0606S | Surge | CAP ALUM 10V POLAR | 71% | View |
| EMVA160ARA101MF55G | Chemi-Con | CAP ALUM 100UF 20% 16V SMD | 71% | View |
Submit your RFQ for UWX0G101MCR1GB and get a quote within 24 hours.
