CAP ALUM 330UF 20% 35V SMD

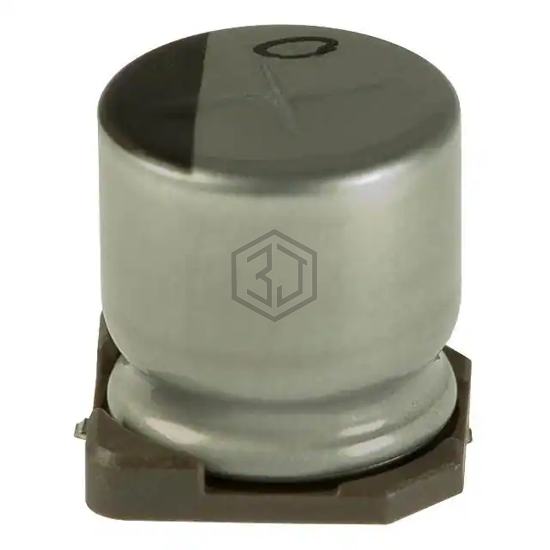

UWT1V331MNR1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 3,634
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWT1V331MNR1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUX1A331MNL6GS | Nichicon | CAP ALUM 330UF 20% 10V SMD | 75% | View |
| EEE-FK1V331AL | Panasonic Electronic Components | CAP ALUM 330UF 20% 35V SMD | 70% | View |
| MAL215374331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 10V SMD | 69% | View |
| UWT1E331MNL1GS | Nichicon | CAP ALUM 330UF 20% 25V SMD | 68% | View |
| EEE-FK1C331GP | Panasonic Electronic Components | CAP ALUM 330UF 20% 16V SMD | 62% | View |
| EEE-FT1H331AP | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V SMD | 57% | View |
