CAP ALUM 47UF 20% 50V SMD

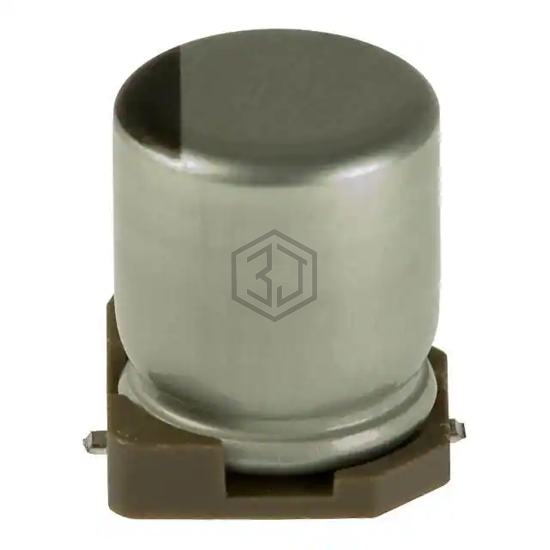

UWT1H470MCR1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,184
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 63 mA @ 120 Hz |
| Ripple Current @ High Frequency | 94.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWT1H470MCR1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVY350ADA470MHA0G | United Chemi-Con | CAP ALUM 47UF 20% 35V SMD | 77% | View |
| UUD1H470MCL1GS | Nichicon | CAP ALUM 47UF 20% 50V SMD | 75% | View |
| 16JGV47M6.3X6.1 | Rubycon | CAP ALUM 47UF 20% 16V SMD | 74% | View |
| UWZ1A470MCL1GB | Nichicon | CAP ALUM 47UF 20% 10V SMD | 64% | View |
| UWG1V470MCL1GS | Nichicon | CAP ALUM 47UF 20% 35V SMD | 53% | View |
| MAL215376479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 25V SMD | 53% | View |
Submit your RFQ for UWT1H470MCR1GS and get a quote within 24 hours.
