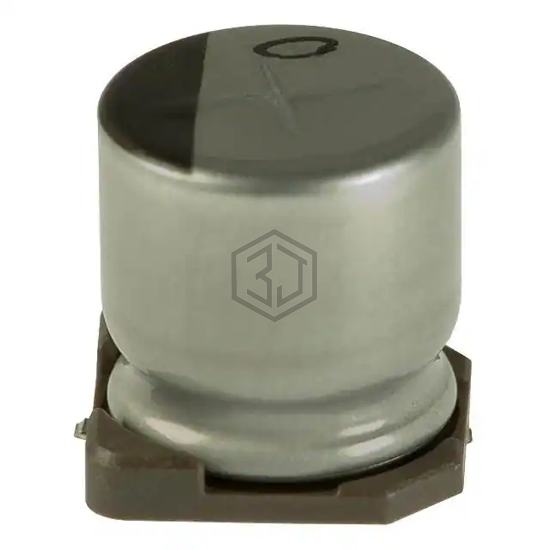

CAP ALUM 470UF 20% 25V SMD
UWT1E471MNR1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 5,895
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWT1E471MNR1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VEJ471M1ETR-1010S | Surge | CAP ALUM 25V POLAR | 90% | View |
| VEU471M1CTR-1010S | Surge | CAP ALUM 16V POLAR | 85% | View |
| FZ477M016HFKTA | Aillen | CAP ALUM 470UF 20% 16V SMD | 82% | View |
| VEU471M0JTR-1010S | Surge | CAP ALUM 6.3V POLAR | 77% | View |
| EEV477M010S9MAA | KEMET | CAP ALUM 470UF 20% 10V SMD | 64% | View |
| EEE-FNJ471XUP | Panasonic Electronic Components | CAP ALUM 470UF 20% 6.3V SMD | 56% | View |
Submit your RFQ for UWT1E471MNR1GS and get a quote within 24 hours.
