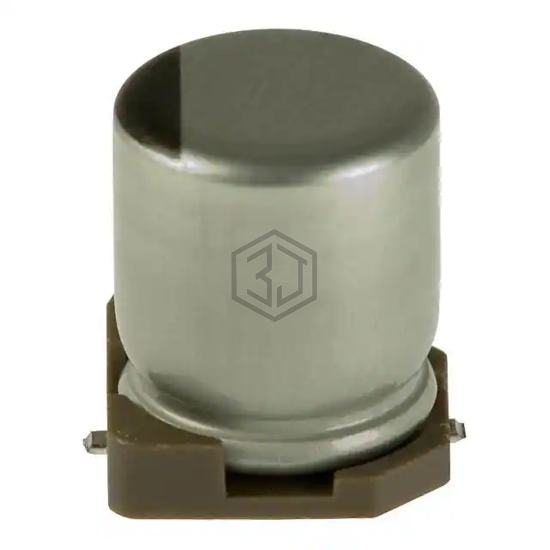

CAP ALUM 220UF 20% 10V SMD
UWT1A221MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 7,863
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 105 mA @ 120 Hz |
| Ripple Current @ High Frequency | 157.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWT0J221MCL1GB | Nichicon | CAP ALUM 220UF 20% 6.3V SMD | 85% | View |
| 227AXZ6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 6.3V SMD | 75% | View |
| EEE-FK1A221AP | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V SMD | 70% | View |
| UUX0J221MNL1GS | Nichicon | CAP ALUM 220UF 20% 6.3V SMD | 69% | View |
| EEE-FN0J221V | Panasonic Electronic Components | CAP ALUM 220UF 20% 6.3V SMD | 66% | View |
| EEE-FK0J221AL | Panasonic Electronic Components | CAP ALUM 220UF 20% 6.3V SMD | 66% | View |
Submit your RFQ for UWT1A221MCL1GS and get a quote within 24 hours.
