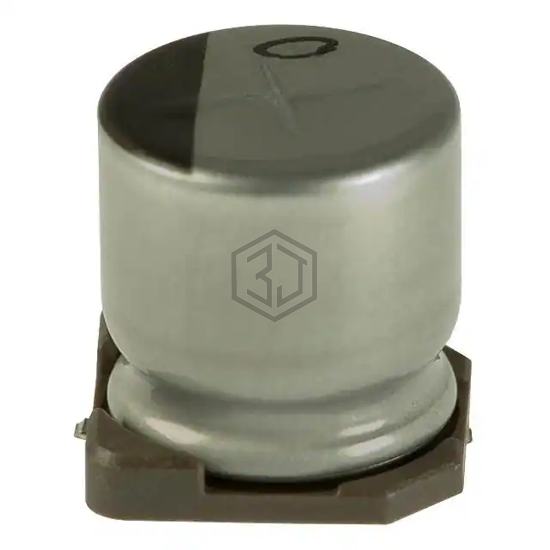

CAP ALUM 1000UF 20% 10V SMD
UWT1A102MNR1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 2,419
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 310 mA @ 120 Hz |
| Ripple Current @ High Frequency | 465 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWT1A102MNR1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUD1A102MNL1GS | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 89% | View |
| UUH1A102MNQ1ZD | Nichicon | CAP ALUM 1000UF 20% 10V SMD | 89% | View |
| 10TPV1000M8X10.5 | Rubycon | CAP ALUM 1000UF 20% 10V SMD | 74% | View |
| UWT0J102MNL1GS | Nichicon | CAP ALUM 1000UF 20% 6.3V SMD | 72% | View |
| EEE-FK1A102AP | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V SMD | 70% | View |
| VZH102M1CTR-1313S | SURGE | CAP ALUM 1000UF 20% 16V SMD | 62% | View |
Submit your RFQ for UWT1A102MNR1GS and get a quote within 24 hours.
