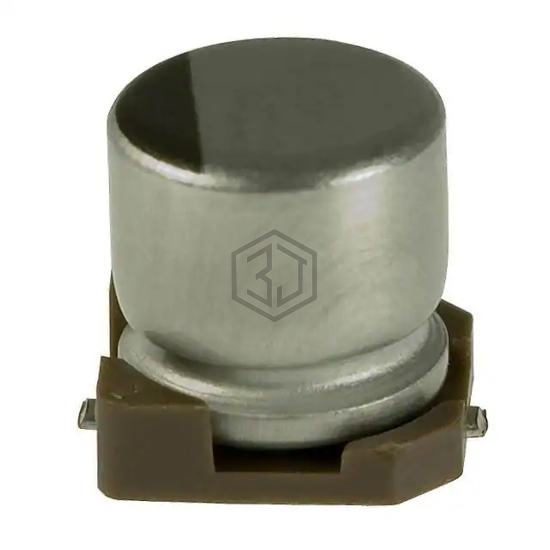

CAP ALUM 47UF 20% 6.3V SMD
UWT0J470MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 5,986
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 36 mA @ 120 Hz |
| Ripple Current @ High Frequency | 54 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 6.3SKV47M5X5.5 | Rubycon | CAP ALUM 47UF 20% 6.3V SMD | 99% | View |
| RVS-6V470ME55U-R | Elna America | CAP ALUM 47UF 20% 6.3V SMD | 96% | View |
| EMZA6R3ADA470MD61G | United Chemi-Con | CAP ALUM 47UF 20% 6.3V SMD | 88% | View |
| UCQ1A470MCL1GB | Nichicon | CAP ALUM 47UF 20% 10V SMD | 81% | View |
| UCQ1C470MCL1GB | Nichicon | CAP ALUM 47UF 20% 16V SMD | 74% | View |
| 10SKV47M6.3X5.5 | Rubycon | CAP ALUM 47UF 20% 10V SMD | 70% | View |
Submit your RFQ for UWT0J470MCL1GB and get a quote within 24 hours.
