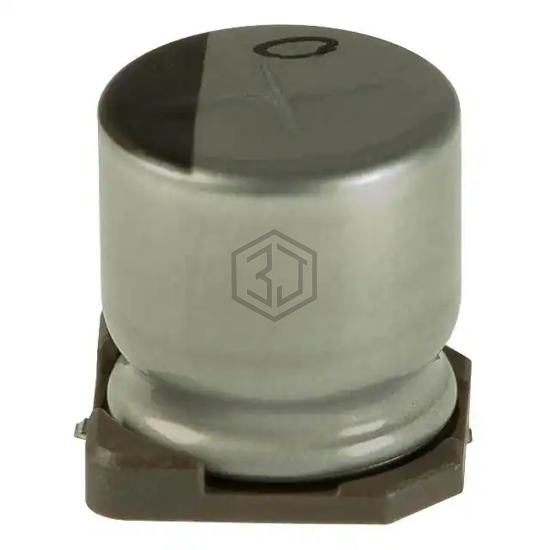

CAP ALUM 1500UF 20% 6.3V SMD
UWT0J152MNR1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1500UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 6,433
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 310 mA @ 120 Hz |
| Ripple Current @ High Frequency | 465 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWT0J152MNR1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UT158M6V3HGKTA | Aillen | CAP. ALUM 1500UF 6.3V 20% SMD | 99% | View |
| UWG0J152MNL1GS | Nichicon | CAP ALUM 1500UF 20% 6.3V SMD | 89% | View |
| EMZA6R3ADA152MJA0G | United Chemi-Con | CAP ALUM 1500UF 20% 6.3V SMD | 74% | View |
| EEE-FK0J152AV | Panasonic Electronic Components | CAP ALUM 1500UF 20% 6.3V SMD | 70% | View |
| MAL215097413E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 10V SMD | 58% | View |
| 6.3TKV1500M10X10.5 | Rubycon | CAP ALUM 1500UF 20% 6.3V SMD | 58% | View |
Submit your RFQ for UWT0J152MNR1GS and get a quote within 24 hours.
