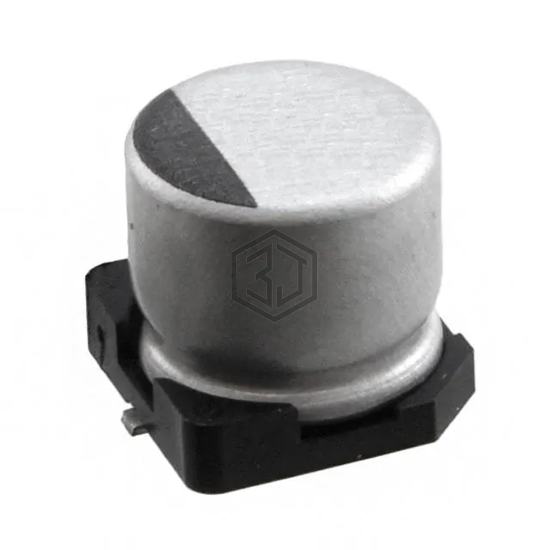

CAP ALUM 33UF 20% 35V SMD
UWS1V330MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,519
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 55 mA @ 120 Hz |
| Ripple Current @ High Frequency | 91.85 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWS1V330MCL1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865250553006 | Würth Elektronik | CAP ALUM 33UF 20% 35V SMD | 97% | View |
| UWT1V330MCR6GS | Nichicon | CAP ALUM 33UF 20% 35V SMD | 95% | View |
| 865090443005 | Würth Elektronik | CAP ALUM 33UF 20% 25V SMD | 85% | View |
| EEE-FN1C330R | Panasonic Electronic Components | CAP ALUM 33UF 20% 16V SMD | 77% | View |
| 336SML050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 50V SMD | 71% | View |
| EEE-HB1H330AP | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V SMD | 65% | View |
