CAP ALUM 100UF 20% 35V SMD

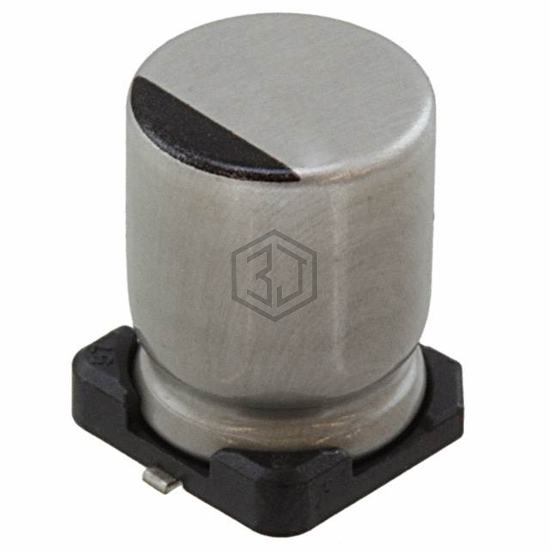

UWS1V101MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 7,863
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 175 mA @ 120 Hz |
| Ripple Current @ High Frequency | 227.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWS1V101MCL1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALSECV00AG310FARK | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 35V SMD | 100% | View |
| EMVH350ADA101MHA0G | United Chemi-Con | CAP ALUM 100UF 20% 35V SMD | 95% | View |
| AHA107M35G24B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 35V SMD | 94% | View |
| MALSECL00AF310FARK | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 35V SMD | 86% | View |
| AVEZ107M06D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 6.3V SMD | 66% | View |
| RVJ-50V101MH10U-R | Elna America | CAP ALUM 100UF 20% 50V SMD | 56% | View |
Submit your RFQ for UWS1V101MCL1GS and get a quote within 24 hours.
