CAP ALUM 150UF 20% 25V SMD

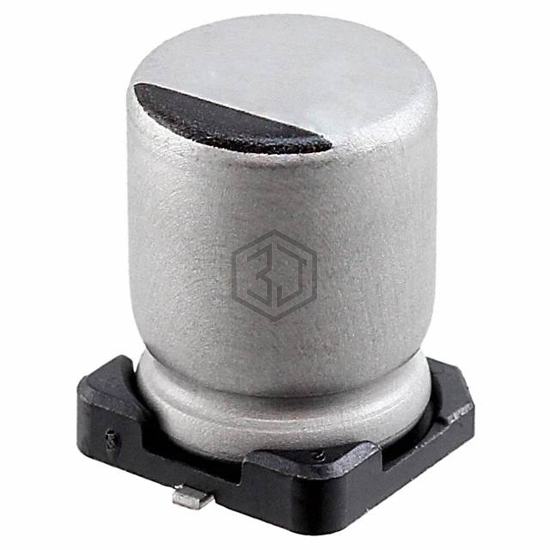

UWS1E151MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 9,977
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 192 mA @ 120 Hz |
| Ripple Current @ High Frequency | 249.6 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWS1E151MCL1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865080345010 | Würth Elektronik | CAP ALUM 150UF 20% 16V SMD | 82% | View |
| EMVE350ADA151MHA0G | United Chemi-Con | CAP ALUM 150UF 20% 35V SMD | 76% | View |
| EXV157M6R3A9HAA | KEMET | CAP ALUM 150UF 20% 6.3V SMD | 75% | View |
| 865080143008 | Würth Elektronik | CAP ALUM 150UF 20% 6.3V SMD | 72% | View |
| UUD1V151MNL1GS | Nichicon | CAP ALUM 150UF 20% 35V SMD | 72% | View |
| EXV157M016A9MAA | KEMET | CAP ALUM 150UF 20% 16V SMD | 70% | View |
Submit your RFQ for UWS1E151MCL1GS and get a quote within 24 hours.
