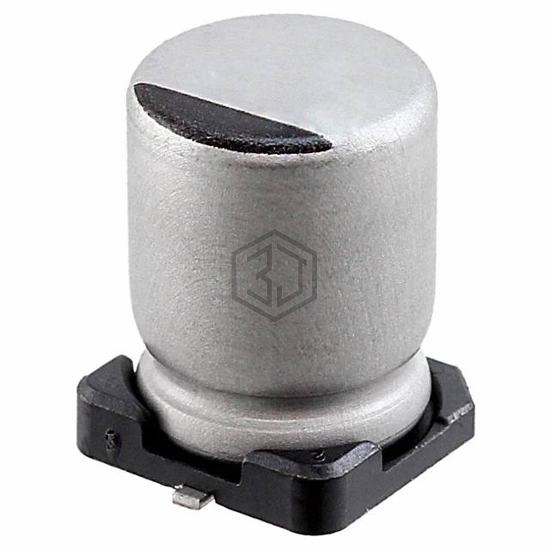

CAP ALUM 220UF 20% 16V SMD
UWS1C221MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 8,503
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 215 mA @ 120 Hz |
| Ripple Current @ High Frequency | 344 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWS1C221MCL1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AFK227M16E16B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 16V SMD | 96% | View |
| EDT227M016A9MAA | KEMET | CAP ALUM 220UF 20% 16V SMD | 73% | View |
| UCL1A221MCL6GS | Nichicon | CAP ALUM 220UF 20% 10V SMD | 73% | View |
| EEE-FK1E221GL | Panasonic Electronic Components | CAP ALUM 220UF 20% 25V SMD | 55% | View |
| 865090245007 | Würth Elektronik | CAP ALUM 220UF 20% 10V SMD | 53% | View |
| 227AXZ050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 50V SMD | 52% | View |
