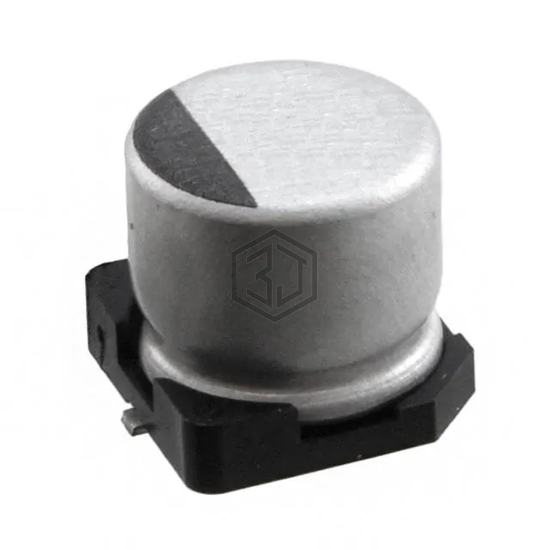

CAP ALUM 150UF 20% 10V SMD
UWS1A151MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 4,989
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 85 mA @ 120 Hz |
| Ripple Current @ High Frequency | 110.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWS1A151MCL1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 157SML010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 150UF 20% 10V SMD | 95% | View |
| EMVE100ARA151MF80G | Chemi-Con | CAP ALUM 150UF 20% 10V SMD | 95% | View |
| EDT157M010S9HAA | KEMET | CAP ALUM 150UF 20% 10V SMD | 93% | View |
| EMLA100ADA151MF61G | United Chemi-Con | CAP ALUM 150UF 20% 10V SMD | 84% | View |
| EEV157M010A9HAA | KEMET | CAP ALUM 150UF 20% 10V SMD | 65% | View |
| EDT157M025S9MAA | KEMET | CAP ALUM 150UF 20% 25V SMD | 56% | View |
Submit your RFQ for UWS1A151MCL1GS and get a quote within 24 hours.
