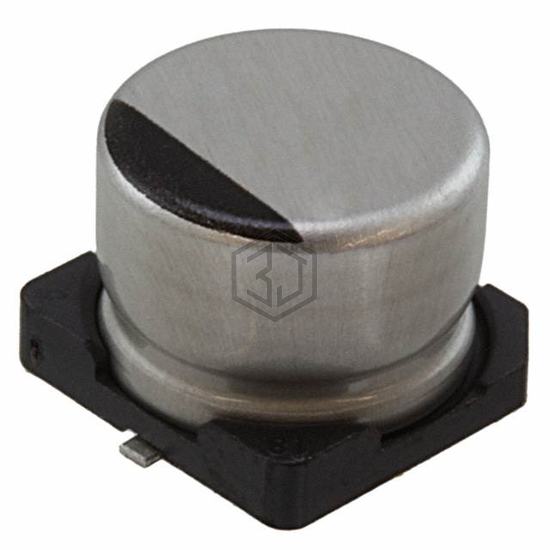

CAP ALUM 330UF 20% 6.3V SMD
UWS0J331MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 5,260
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | High Temperature Reflow |
| Ripple Current @ Low Frequency | 190 mA @ 120 Hz |
| Ripple Current @ High Frequency | 247 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWS0J331MCL1GS is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FKJ331XAV | Panasonic Electronic Components | CAP ALUM 330UF 20% 6.3V SMD | 96% | View |
| EMZA6R3ADA331MF80G | United Chemi-Con | CAP ALUM 330UF 20% 6.3V SMD | 90% | View |
| EEE-FKA331XSL | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V SMD | 82% | View |
| UWT1E331MNL1GS | Nichicon | CAP ALUM 330UF 20% 25V SMD | 76% | View |
| UUX1A331MNL6GS | Nichicon | CAP ALUM 330UF 20% 10V SMD | 65% | View |
| MAL215374331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 10V SMD | 64% | View |
