CAP ALUM 56UF 20% 6.3V SMD

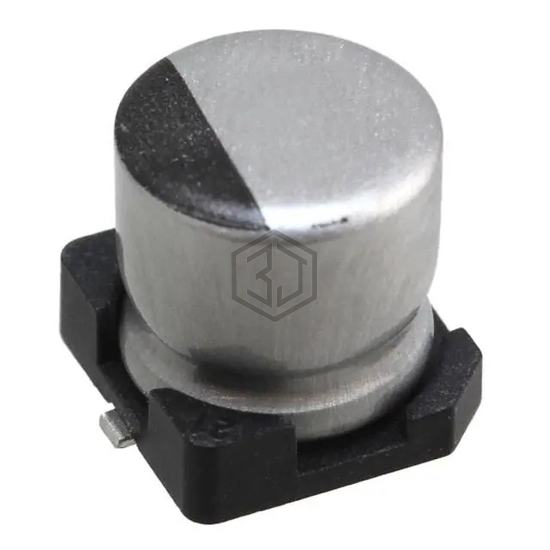

UWR0J560MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 2,982
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 52 mA @ 120 Hz |
| Ripple Current @ High Frequency | 78 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWR0J560MCL1GB is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWX0J560MCL1GB | Nichicon | CAP ALUM 56UF 20% 6.3V SMD | 100% | View |
| EEE-FN1A560UR | Panasonic Electronic Components | CAP ALUM 56UF 20% 10V SMD | 80% | View |
| EEE-FK1A560SR | Panasonic Electronic Components | CAP ALUM 56UF 20% 10V SMD | 80% | View |
| 566AXZ6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 56UF 20% 6.3V SMD | 76% | View |
| UUD0J560MCL1GS | Nichicon | CAP ALUM 56UF 20% 6.3V SMD | 76% | View |
| EMVA250ADA560MF55G | United Chemi-Con | CAP ALUM 56UF 20% 25V SMD | 71% | View |
Submit your RFQ for UWR0J560MCL1GB and get a quote within 24 hours.
