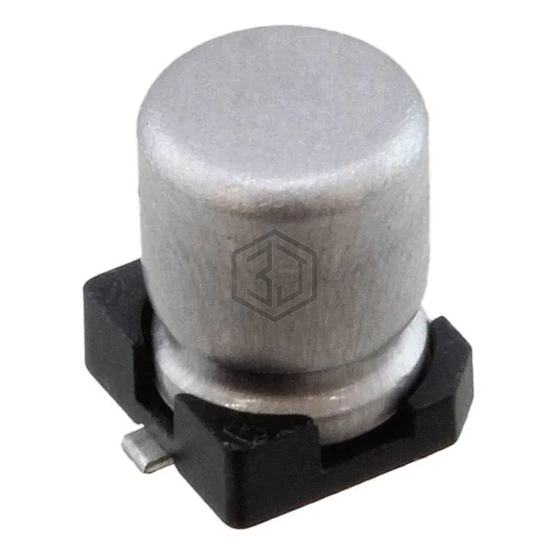

CAP ALUM 10UF 20% 10V SMD
UWP1A100MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 6,661
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17 mA @ 120 Hz |
| Ripple Current @ High Frequency | 25.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUQ1E100MCL1GB | Nichicon | CAP ALUM 10UF 20% 25V SMD | 64% | View |
| EMVA250ADA100MD55G | United Chemi-Con | CAP ALUM 10UF 20% 25V SMD | 62% | View |
| UWH1H100MCL1GS | Nichicon | CAP ALUM 10UF 20% 50V SMD | 62% | View |
| EDH106M025A9DAA | KEMET | CAP ALUM 10UF 20% 25V SMD | 59% | View |
| 25SEV10M5X5.5 | Rubycon | CAP ALUM 10UF 20% 25V SMD | 56% | View |
| EMVE500ADA100MF55G | United Chemi-Con | CAP ALUM 10UF 20% 50V SMD | 51% | View |
Submit your RFQ for UWP1A100MCL1GB and get a quote within 24 hours.
