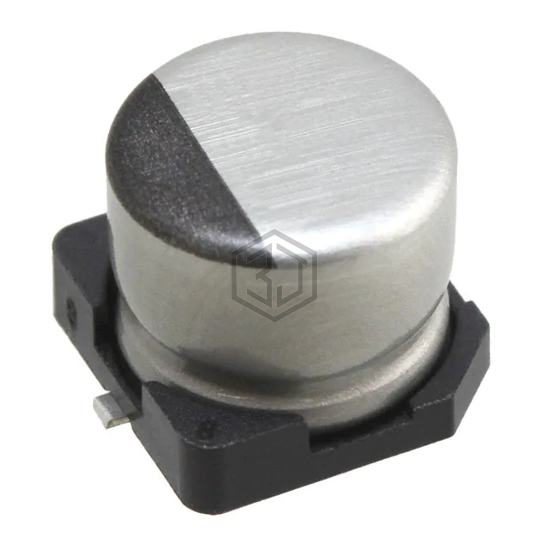

CAP ALUM 22UF 20% 35V SMD
UWJ1V220MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 7,208
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 45 mA @ 120 Hz |
| Ripple Current @ High Frequency | 67.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWJ1V220MCL1GB is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWR1E220MCL1GB | Nichicon | CAP ALUM 22UF 20% 25V SMD | 86% | View |
| EDH226M025A9GAA | KEMET | CAP ALUM 22UF 20% 25V SMD | 85% | View |
| 25NSEV22M6.3X5.5 | Rubycon | CAP ALUM 22UF 20% 25V SMD | 78% | View |
| AEA0810220M100R | KYOCERA AVX | ALUMINUM CAP | 63% | View |
| 6.3SEV22M4X5.5 | Rubycon | CAP ALUM 22UF 20% 6.3V SMD | 58% | View |
| UWZ1A220MCL1GB | Nichicon | CAP ALUM 22UF 20% 10V SMD | 54% | View |
Submit your RFQ for UWJ1V220MCL1GB and get a quote within 24 hours.
