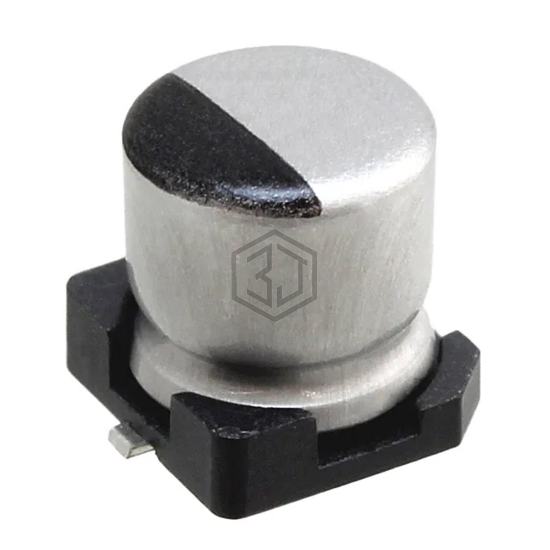

CAP ALUM 22UF 20% 16V SMD
UWJ1C220MCQ1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 6,263
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 37 mA @ 120 Hz |
| Ripple Current @ High Frequency | 55.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWJ1C220MCQ1GB is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UT226M016HDHTA | Aillen | CAP. ALUM 22UF 16V 20% SMD | 91% | View |
| EDK226M016A9BAA | KEMET | CAP ALUM 22UF 20% 16V SMD | 82% | View |
| UUA1A220MCL1GS | Nichicon | CAP ALUM 22UF 20% 10V SMD | 76% | View |
| 226SMH6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 6.3V SMD | 67% | View |
| 865080140001 | Würth Elektronik | CAP ALUM 22UF 20% 6.3V SMD | 65% | View |
| EMVA630ADA220MF80G | United Chemi-Con | CAP ALUM 22UF 20% 63V SMD | 64% | View |
